IDFAQ: Build Securely Snort with Sguil Sensor Step-by-Step Powered by Slackware Linux

Version 6.1 - 2 January 2008


This configuration process is used to deploy Snort sensors with the information managed through a Sguil console powered by the Slackware Linux (GNU) operating system. This setup was developed for sensors using IDE or SCSI drives. The full installation using this setup is ~400 MB in size and provides no remote services except through Secure Shell and Webmin for remote management of the sensor and the server. The Snort sensor logs are process via Barnyard backend processing.

This installation contains three separate and ready to use Sguil packages that contain all the necessary files to install Sguil as a sensor only (sensguil package), database only (sguildb package), or all-in-one systems (sguil package). Sguil contains some very useful analysis function such as the Security Analyst Network Connection Profiler (sancp) which collects statistical network traffic information, it has a script to log all the packets in pcap format, it uses tcpflow and p0f to get TCP session transcripts, and uses Wireshark for in-depth packet analysis.

There is a sguil.pdf document that explains how to setup Sguil and the Sguil client on a Windows workstation. Additional information including console snapshots can be viewed at: http://sguil.sourceforge.net.

This installation has a web management interface called Webmin which is used to remotely manage the MySQL database and Snort sensor via a SSL enabled web browser. Additional information about Webmin is available at: http://www.webmin.com/. In addition, a Snort plugin by MSB Networks (http://msbnetworks.net/snort/) has been adapted and included in Webmin to fully manage the Snort sensor (config file, plugins, oinkmaster, ruleset, etc.) to ease remote management of the sensor. See the Webmin section to correctly configure this package.

Because of the changes in Snort 2.6.x, this sensor requires a minimum of 1GB of RAM to function efficiently. If you have less than that, uncomment one of the memory options in the Snort configuration file located in /usr/local/snort/etc/snort.external.conf to ensure the sensor function properly. The most common memory option used is either search-method ac-bnfa or lowmem for systems with 512 MB of RAM. This package is built for a sensor that contains 2 NIC cards (eth0 = control and eth1/bond0 = Snort).

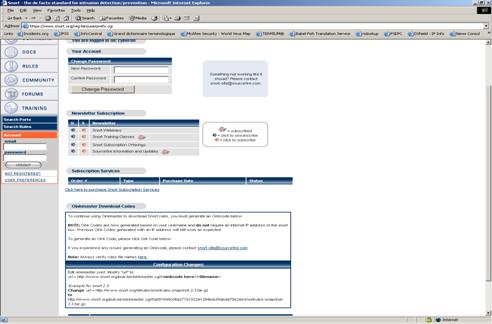

In order to make Snort signature updates more flexible, I have included the oinkmaster script written by Andreas Ostling available at http://oinkmaster.sourceforge.net/.

The Snort sensor includes the Emerging Threats rules also updated daily via Oinkmaster. The rules are available at: http://www.emergingthreats.net/rules/.

The Shadow/Snort ISO image powered by the Slackware Linux OS can be downloaded at: http://www.whitehats.ca/downloads/ids/shadow-slack/shadow.iso.

The MD5 signature for the ISO image is available at:

Important: Before you start, make sure you are disconnected from the network until the sensor has been securely configured.

  • Boot from install CD with correct kernel. Default is huge26smp.s which should work with all systems.
  • Partition the drive(s) as per example
  • Run setup and follow Install the Software
  • After the installation completed, at the Slackware Linux Setup screen, select <Cancel>
  • cd /cdrom/sguil
  • Run pkgtool
  • Select Current and install the package
  • Remove CD (eject)
  • Type reboot to restart system
  • Review sguil.pdf documents for Sguil server/client installation
  • Login system
  • Change MySQL root password (default blank)
    • mysqladmin -u root password .your-new-password-for-sql_user-root.
  • Change Webmin admin password
  • /usr/local/webmin/changepass.pl /etc/webmin admin newpassword
  • Add a Sguil user for remote console access
    • /etc/sguild/sguild -adduser guy [Enter]
  • Webmin access https://systemIP:10000 (default is user: admin, password: admin)
  • Configure TCP Wrappers for SSH access using Webmin (Servers, TCP Wrappers)
  • Configure the sensor through Webmin (Servers, Sguil Sensor Controls, Barnyard eth1 config) to change shadow to real sensor name and remove # output sguil.
  • In Sguil Sensor Controls, Restart all Sensor Services
  • See Client Configuration to access the database with a Windows workstation
  • See Shadow Hourly Web Reports to configure Shadow like reports

Database Summary Installation

  • Boot from install CD with correct kernel. Default is huge26smp.s which should work with all systems.
  • Partition the drive(s) as per example
  • Run setup and follow Install the Software
  • After the installation completed, at the Slackware Linux Setup screen, select <Cancel>
  • cd /cdrom/sguildb
  • Run pkgtool
  • Select Current and install the package
  • Remove CD (eject)
  • Type reboot to restart database server
  • Review sguil.pdf documents for Sguil server/client installation
  • Login system
  • Change MySQL root password (default blank)
    • mysqladmin -u root password .your-new-password-for-sql_user-root.
  • Change Webmin admin password
  • /usr/local/webmin/changepass.pl /etc/webmin admin newpassword
  • Add a Sguil user for remote console access
    • /etc/sguild/sguild -adduser guy [Enter]
  • Webmin access https://systemIP:10000 (default is user: admin, password: admin)
  • Configure TCP Wrappers for SSH access using Webmin (Servers, TCP Wrappers)
  • See Client Configuration to access the database with a Windows workstation

Sensor Summary Installation

  • Boot from install CD with correct kernel. Default is huge26smp.s which should work with all systems.
  • Partition the drive(s) as per example
  • Run setup and follow Install the Software
  • After the installation completed, at the Slackware Linux Setup screen, select <Cancel>
  • cd /cdrom/sensguil
  • Run pkgtool
  • Select Current and install the package
  • Remove CD (eject)
  • Type reboot to restart sensor
  • Review sguil.pdf documents for Sguil server/client installation
  • Login system
  • Change Webmin admin password
  • /usr/local/webmin/changepass.pl /etc/webmin admin newpassword
  • Webmin access https://systemIP:10000 (default is user: admin, password: admin)
  • Configure TCP Wrappers for SSH access using Webmin (Servers, TCP Wrappers)
  • Configure the sensor through Webmin (Servers, Sguil Sensor Controls, Barnyard eth1 config) to change shadow to real sensor name and remove # output sguil.
  • Configure sensor to log data into MySQL as per "Configure SSL Between a Sensor and a Sguil Server section" (Servers, Sguil Sensor Controls, Sensor Agent eth1 config file) and change to correct database server IP.
  • In Sguil Sensor Controls, Restart all Sensor Services and Restart sensoragent_eth1
  • See Shadow Hourly Web Reports to configure Shadow like reports

Client Configuration

Download the Windows Sguil client at:


Unpack in C:\sguil-0.6.1

Download Windows Active TCL at: http://www.activestate.com/Products/ActiveTcl/

Install at c:\tcl

Download Windows TLS libraries at: http://tls.sourceforge.net

Unpack in C:\tcl\lib

Download Wireshark for Windows at: http://www.wireshark.org

Install at C:\Wireshark

If you prefer Firefox instead of Explorer, download at: http://www.mozilla.org/

Install at C:\Firefox

Sguil sguil.conf update

Edit c:\sguil-0.6.1\client\sguil.conf ® Configure according to your Windows settings

# Change SERVERHOST to the correct IP or servername


# Set up OpenSSL here (read ./doc/OPENSSL.README)

# 0=off 1=on


# win32 example

set ETHEREAL_PATH "c:/wireshark/wireshark.exe"

# win32 example (IE)

set BROWSER_PATH c:/progra~1/intern~1/iexplore.exe or

set BROWSER_PATH "c:/firefox/firefox.exe"

# Mailserver to use for emailing alerts

set MAILSERVER mail.example.com

# Default From: address for emailing

set EMAIL_FROM foo@example.com

Note: The TLS libraries are used to encrypt the session between the Windows client and the database server.

Create the C:\TMP directory to store Wireshark files if it doesn't already exist

Client Access to Database

The client can access the database at this point by executing the sguil.tk. However, sguil.tk must be associated with the "wish application" before it will start.


Installation, Configuration and Partitioning the Drive

Drive partitioning can be done in multiple ways. This is an example that can be used if you have two drives and you are installing both the database and server on the same system:

Database and Sensor

(Contains the tcpdump Sguil logs)
Drive One
/Minimum of 750 MB
swapMinimum of 512 MB
/usr/localRemainder of drive (Contains MySQL DB and Snort)
Drive Two
/LOGWhole drive

- Boot on the system using the Slackware CD-ROM.

To partition the drive, login as root and run cfdisk /dev/hda (IDE drive), cfdisk /dev/sda (SCSI drive) or cfdisk /dev/cciss/c0d0 (Raid drive). If this isn't a new drive, delete the old partitions before starting.

- hda1: / = 750 MB (Select new, select primary, size is 750, beginning, bootable)

- hda2: SWAP = 512 MB or same amount as the RAM (Select Pri/Log Free Space, new, primary, size is 512, beginning)

- Change hda2 to swap by selecting type 82

- hda3 (Select Pri/Log Free Space, new, primary, for MySQL and Snort)

- hda4 (Select Pri/Log Free Space, new, primary, remainder of disk for pcap logs)

- Select Write to save the new settings to disk

- Select Quit to exit

Note on MySQL Drive size estimate:

Recommend no more than about 250GB for the MySQL data.  To keep ~500,000,000 rows of SANCP data and ~2,500,000 alerts, a MySQL database will need ~180GB of disk space.

Install the Software

Now that you have partitioned the drive, and saved your setting, you are ready to setup the Operating System.

- Run setup

- Select addswap

- Continue with installation: yes

- Check swap partitions for bad blocks (It.s a choice here): yes or no

- Swap partition configured

- Select Linux installation partition

- /dev/hda1 (format, xfs - default)

- /dev/hda3 (format, xfs - default)

- /dev/hda4 (format, xfs - default)

- Select mount point for /dev/hda3: /usr/local → Needed for Snort/MySQL

- Select mount point for /dev/hda4: /LOG → Needed for Sguil pcap logs

- Select add none and continue with setup

- Select continue to go to the SOURCE section

- Select 1 to install from a Slackware CD-ROM

- Select auto to scan automatically for the CD or DVD drive

- Make sure the CD or DVD is in the CD-ROM drive and select OK

- Select Yes on continue

- Scan for the CD or DVD drive

- Install Snort with Sguil from the installation CD which only shows 5 packages:

A, AP, D, N, TCL

- Select OK to continue and go to the INSTALL section

- Select install everything (full)

- Install a Linux kernel from the CD-Rom

- Select default kernel you booted with

- Select huge26.s for kernels that don't require hyper treading or multiple CPUs huge26SMP.s for kernel that require hyper threading or multiple CPUs.

- Make a boot disk for recovery (LILO) or skip it

- After the boot disk, choose continue with the configuration

- Skip modem configuration (no modem)

- Enable Hotplug/Udev subsystem at boot? Yes

- Install LILO and select expert

- Select Begin, at the blank prompt press enter, select default, install to MBR confirm location to install lilo (select default @/dev/hda, /dev/sda or /dev/cciss/c0d0) and none

- Add Linux and choose the root partition (i.e. /dev/hda1, /dev/sda1 or /dev/ccisss/c0d0p1)

- Use Linux as a partition name

- Install LILO

- Configure the network with your settings

- Probe the network card

- When the network card has been probed, it will ask if the settings are correct

- Confirm the network setup

- Confirm startup services to run (use default), select Enter

- Setup the hardware clock

- Setup the root password

- After the installation completed, at the Slackware Linux Setup screen, select <Cancel>

- Depending of type of installation: cd /cdrom/sguil (DB and sensor combo) or sguildb (DB only) or sensguil (sensor only)

- Run pkgtool

- Select Current and install the package

- Remove CD (eject)

- Reboot (reboot at the prompt)

- Manually eject the CD-ROM

- Log back into the sensor as root

- Delete residual mail rm /var/spool/mail/root

TCP Wrapper - SSH

Configure SSH TCP Wrappers via Webmin or in the following way:

- vi /etc/hosts.allow (Webmin, Servers, TCP Wrappers)

- Add in the TCP Wrappers file which host(s) are allowed to connect to the sensor

192.168.3. \ \


- The /etc/hosts.deny has been configured to deny ALL (ALL: ALL) by default

IPTables Firewall

Configure iptables firewall (rc.firewall)

Note: You need a firewall (iptables) to allow the sensor to be as invisible as possible. You can use the firewall supplied with this installation or create your own.

O- Configure the firewall located in /etc/rc.d directory or create your own

O- Edit the firewall script and change to variable according to your site

O- chmod 755 /etc/rc.d/rc.firewall to enable the firewall

O- To start the firewall at this time execute: /etc/rc.d/rc.firewall at the prompt

O- Check the firewall policy with the following command: iptables -L

O- The firewall will start upon the next reboot

Setting up the NICs if undetected During the Installation

Note: A list of the NIC kernel modules is in the /etc/rc.d/rc.modules file. I recommend using an Intel PCI card for the Shadow/Snort packet collection. If the NIC card detection setup fails, the card can be manually added to this script. The cards will be loaded in the order they are listed in this configuration file.

Setting up NIC modules (example)

If the sensor is using two different NICs, it will only detect the first one it sees and you will need to add the NIC module for the second one to the rc.netdevice file. You can look into the /etc/rc.d/rc.modules file for the NIC module and test it at the command line to see if it loads as follows:

modprobe eepro1000


After dmesg displays its output, you should see the card loaded at the end of the dmesg output. If it loaded correctly, then add it to the rc.netdevice file to ensure it loads when the sensor or server reboots. If the NIC you are using doesn't appear in the rc.modules list, look at the list in /lib/modules/2.6.x/kernel/drivers/net where 2.6.x (x = kernel revision number) and repeat the above process until you find the right module to load your card.

You should have two modules listed. The order they are listed is the order they will load.

vi /etc/rc.d/rc.netdevice

# RealTek 8129/8139 to communicate with the Management station (eth0)

/sbin/modprobe rtl8139oo

# Intel EtherExpress Pro/100 PCI support used to collect packets (eth1):

/sbin/modprobe eepro100

# Targa 3 10/100/1000 card (eth2):

/sbin/modprobe tg3

Mounting USB Drive

To mount a USB drive with this OS, plug in the USB drive and do the following:

dmesg |grep sda, sdb, sdc or sdd

mount /dev/sda? /mnt/hd  Where ? = the partition and usually 1

cd /mnt/hd You can copy or move files from this directory

umount /usb When done with the USB drive

Note: the device can be sda, sdb, sdc, sdd and usually partition 1 (i.e. sda1)

Snort Sensor Memory Limitation

You can limit the amount of memory used by the sensor by uncommenting one of the memory options in /usr/local/snort/etc/snort.external.conf (eth1) or snort.internal.conf (eth2) or using Webmin under Server to make the change. Suggested configuration for low memory and high performance is:

config detection: search-method ac-bnfa

Webmin Configuration

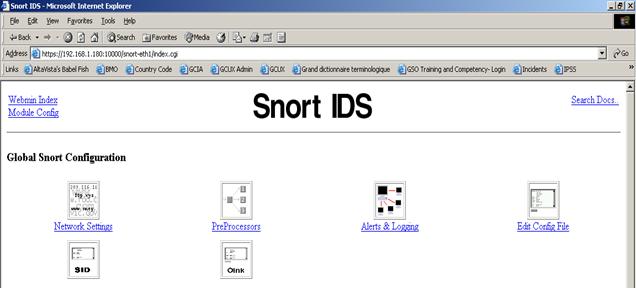

Webmin is a secure remote sensor and console manager. For example, the IDS can be remotely managed via an SSL enabled browser to manage MySQL, Sguil, the logs, the entire Snort IDS including its plugins, the rules, the configuration files, the restart the sensor services, view a daily Sguil report, etc. It is quite versatile and very easy to use for those who prefer using a GUI to manage their sensor.

After you log into Webmin, to manage the server and the Snort sensor is located in the Servers section. You then are going to see Snort IDS Admin eth1 to eth4, etc. The eth1 and eth2 are the only two-interface preconfigured in Webmin.

Configuring Webmin

You need to change the default account password before making this system operational. The default account is admin and the default password is admin. Change the default admin account password the following manner. At the sensor command line console do:

/usr/local/webmin/changepass.pl /etc/webmin admin newpassword

The Webmin service can be started and stopped this way:



Access is via SSL this way:


A FAQ is available on the Webmin site at:


Configuring Barnyard to send to Sguil database

Barnyard Version 0.2.0 (Build 32)

6 December 2005

Barnyard unified logging output processor is used with this system to process all the data from the Snort sensor. The default scripts are setup to process the unified logs to binary logs format and can also be configured to process MySQL database logging as well as syslog. In order to use Barnyard with MySQL, you must configure the output process as per the instructions below.

This Barnyard binary has been pre-built with the following options:

--with-tcl Support for TCL

Configure Barnyard to Forward Data to Sguil Database

The Snort output processor is enable with log_unified filename snort.log, limit 128 in the snort.external.conf and snort.internal.conf (only if you are monitoring this interface) to log to the /usr/local/snort/log/eth* directory.

The default account is Sguil MySQL database account is sguil and the password is password. These can be changed if you desire but the whole sensor is configured to work with this account with the following minor configuration changes. These changes can be done at the command line or via Webmin in the Server tab. Configure Barnyard to forward data from a sensor to the Sguil database in the following manner:

vi /usr/local/barnyard/etc/barnyard.eth1.conf (External interface)

vi /usr/local/barnyard/etc/barnyard.eth2.conf (Internal interface)

vi /usr/local/barnyard/etc/barnyard.bond0.conf (External bond0 interface)

# set the hostname (used for the sguil db output plugin)

config hostname: shadow

# Converts data from the dp_log plugin into standard pcap format

# Argument: <filename>

output log_pcap

Enable Data Insert into Sguil Database

# Use this configuration if using Sguil

output sguil: agent_port 7735 (eth1/bond0) or output Sguil: agent_port 7745 (eth2)

- Save the file and restart Barnyard

Note: Barnyard connects to the database via the sensoragent_eth1, sensoragent_bond0 or sensoragent_eth2 startup scripts. The sensoragent configuration files are located in /usr/local/sguil/bin in the sensor_agent_eth1.conf, sensor_agent_bond0.conf and sensor_agent_eth2.conf files in the SET BY_PORT 7735 and require no other configurations.

/etc/rc.d/rc.barnyard restart

- Ensure the Barnyard processes are running

ps -aef |grep barnyard

Configure SSL between a Sensor and a Sguil Server

If your configuration includes a sensor and a remote database server, you must configure the sensor to know where the database server is located. To allow the sensor to communicate with a Sguil database server, follow these steps:

- Log into Webmin

- Select the Server tab

- Select Sensor Controls

- Select Sensor Agent eth1 config file, Sensor Agent bond0 config file or Sensor Agent eth2 config file

- Modify "set SERVER_HOST" and change the IP to the Sguil Server database IP and save changes

- Restart Restart sensoragent_eth1, Restart sensoragent_bond0 or Restart sensortagent_eth2

Local sid Rule Mapping

Note: If you are going to create some local rules (i.e. local-eth1.rules) you MUST include the SID and the SID name in the /usr/local/snort/rules/local-sid.map and can be done via Webmin. These must match the information put in the rule file as follow:

9001 || Local task rule

9002 || TCP connections to TCP 3127

Shadow Hourly Web Reports

Note: This should be configured only on an external sensor and the reports can only be viewed on the sensor. For the log file to be processed, you need to enable the cronjobs under the Shadow account. To do so, do the following:

As shadow do (These cronjob must be enabled):

su - shadow

crontab -e

Uncomment the conjob time and for external (eth1 NIC) or internal (eth2 NIC) to run the hourly reports saved in Webmin, Servers/ Sguil Reports

# Process Sguil logs

3 * * * * /usr/local/SHADOW/fetchem.pl -l external

10 * * * * /usr/local/SHADOW/fetchem.pl -l internal

Now you will need to configure the Shadow filter for your site

- cd /usr/local/SHADOW/filters

- cd external or internal

In Webmin, edit using vi the following filters (to configure see ShadowFilters.pdf):





Change the net 172.21 to the correct network address.

Test your configuration in debug mode

  1. su - shadow
  2. cd /usr/local/SHADOW
  3. ./fetchem.pl --loc external --debug  (press enter to run the last hour log)
  4. more /tmp/fetchem.log (This file will show whether there was any errors and where the error is)
  5. If you had some errors fix them and run through steps 3 and 4
  6. When it shows success go to the shadow website
  7. https://sensor_IP/reports/

New procedures for Snort Oinkmaster Updates


You should read the FAQ on how to configure oinkmaster to download the signature updates. http://oinkmaster.sourceforge.net/

Register with Snort to get an account


You will receive your account information via e-mail

Login the site as per e-mail and password

Change your password if you want

In order for Oinkmaster to download the updated rules, you must generate a site string using the Get Code at the bottom of the page

As per the instructions at the bottom of the page, copy the new download path with your sting in it into oinkmaster.conf

Path (code is invalid, it is just an example):

url = http://www.snort.org/pub-bin/oinkmaster.cgi/5a081649c06a277e1022e1284bdc8fabda70e2a4/snortrules-snapshot-Current.tar.gz

  • The bold portion is where your code goes.
  • The file is located at: /usr/local/snort
  • The oinkmaster.conf file can be updated using vi or with Webmin
  • If using Webmin, goto Servers, Snort IDS Admin eth1, select Oink
  • Find url = http://www.snort.org/dl/rules/snortrules-snapshot-2.3.tar.gz

Change it to:

url = http://www.snort.org/pub-bin/oinkmaster.cgi/INSERT YOUR ACCOUNT HERE/snortrules-snapshot-Current.tar.gz

Webmin screenshots below

Snort IDS Main Screen

Edit Oinkmaster

Shadow/Snort with Sguil Files and Scripts

/etc/rc.d All system start/stop scripts

/etc/rc.d/rc.K Kill all system script

/etc/rc.d/rc.S Start up script for single-user mode

/etc/rc.d/rc.M Start up script for multi-user mode

/etc/rc.d/rc.snort Snort start/stop script

/etc/rc.d/rc.barnyard Barnyard start/stop script

/etc/rc.d/rc.sguild Sguil database start/stop script

/etc/rc.d/sancpd_eth1 sancp start/stop script for eth1

/etc/rc.d/sensoragent_eth1 Sensor Agent start/stop script to connect to database

/etc/rc.d/rc.mysqld MySQL database script

/etc/rc.d/rc.netdevice NIC module loading script

/etc/rc.d/rc.local Script for all other configuration

/etc/issue Banner message

/etc/motd Banner message

/etc/rc.d/rc.firewall Setup firewall

/var/adm/messages General log file

/var/adm/syslog Syslog file

/var/run Various server pid files

/usr/local/snort Snort directory files

/usr/local/snort/etc Snort configuration scripts

/usr/local/snort/rules Snort rules

/usr/local/snort/log Snort log directory

/usr/local/snort/bin Snort sensor binary

/usr/local/barnyard Barnyard directory files (including Barnyard lock file)

/usr/local/barnyard/etc Barnyard configuration scripts

/usr/local/barnyard/log Barnyard log directory

/usr/local/barnyard/bin Barnyard binary

/etc/sguild Sguil configuration scripts

/etc/sguild/incident_report.tcl Daily Sguil web report output in Webmin/Servers

/usr/local/sguil/bin Sguil logging scripts (log_packets_eth1.sh)

/LOG/external Sguil log directory (eth1)

/LOG/external/dailylogs Sguil daily logs collected by log_packets_eth1.sh

/LOG/external/portscans Snort portscan dump directory

/LOG/external/sancp sancp log dump directory

/LOG/internal Sguil log directory (eth2)

/usr/local/mysql MySQL database

/usr/local/SHADOW Shadow directory files

/LOG/RAW/gmt Shadow log files

/usr/local/NGREP Network Grep sensor files

/root/sguil_pcap.sh Sguil pcap files search script for /LOG/external/dailylogs

/root/shadow_save.sh Shadow pcap files search script for /LOG/RAW/gmt

/root/epoch.pl Convert Snort pcap files epoch time to YYYYMMDDHH

sancp custom queries

SID 1 - shadow

SID 2 - Snort1

Source and Destination Port Search

WHERE sancp.start_time > '2005-01-05' AND (sancp.src_port = '11768') OR (sancp.dst_port = '11768') LIMIT 500

Source and Destination Port Search for Only SID 2

WHERE sancp.sid= 2 AND sancp.start_time > '2005-01-20' AND (sancp.src_port = '15118') OR (sancp.dst_port = '15118') LIMIT 500

Single Day Source and Destination IP Search for SID 2 only

WHERE sancp.sid=2 AND sancp.start_time > '2005-01-15' AND sancp.end_time < '2005-01-16' AND (sancp.src_ip = INET_ATON('') OR sancp.dst_ip = INET_ATON('')) LIMIT 500

Specific Source IP

WHERE sancp.start_time > '2005-03-15' AND (sancp.src_ip = INET_ATON('')) LIMIT 500

Specific Sensor (sid=2) and Source Port

WHERE sancp.sid=2 AND sancp.start_time > '2005-03-30' AND (sancp.src_port='53') LIMIT 500

Snort IDS configuration

Snort Version (Build 72)

18 December 2007

If you are going to enable the firewall on the sensor, don't forget to add the IP of the Sguil database in the rc.firewall script if the sensor is going to be sending the events to a remote database.

Note about Sguil: You can install any of the 3 packages (sguil, sguildb and sensguil) available on the CD which has been expressly built to run on this sensor. Check the document called sguil.pdf in the rel_note on how to configure each of the packages. Snort is configured to automatically use Barnyard through its output log_unified function.

This Snort binary has been pre-built with the following options:

--with-mysql Support for MySQL

--enable-sourcefire Enable Sourcefire specific build options

--enable-pthread Enable pthread support

--enable-stream4udp Enable UDP session tracking in Stream4

--enable-dynamicplugin Enable to dynamically load plugin, rules lib, detection eng

--enable-perfprofiling Enable preprocessor and rule performance profiling

--enable-timestats Enable TimeStats functionality

--enable-linux-smp-stats Enable statistics reporting through proc

--enable-flexresp Flexible response on hostile connection attempt

--enable-aruba Enable Aruba output plugin

Both Sguil patches have been applied to Snort to support the Sguil database.

To uninstall Snort on the IDS platform do:

- Run pkgtool and select remove packages from other directories

- Select Snort to remove the package

The necessary files have been installed into the /usr/local/snort directory. This version contains the latest signature libraries from http://www.snort.org as of the above date.

The Snort binary is compiled with the "-static" option and the sensor runs in a charrooted jail by default in the /usr/local/snort. Thanks to GJ Hagenaars. contribution, the Snort sensor is now controlled by a startup script located in /etc/rc.d/rc.snort.

Snort configuration files for multiple interfaces are located in /usr/local/snort/etc and each interfaces has a snort.internal.conf or snort.external.conf. Edit each of these files to reflect your settings.

Snort configuration files for multiple interfaces are located in /usr/local/snort/etc and each interface should be listed in snort.internal.nic and snort.external.nic. The eth2 interface is configured by default to snort.internal.nic. Edit each of these files to reflect your settings.

  • The Snort unified logs are saved in /usr/local/snort/log/eth(1-5). Default installation will contain eth0 and eth1 directory.
  • Test the configuration by running the ./check_snort_eth1 and check_snort_eth2 script. If the this is successful, start the sensor
  • /etc/rc.d/rc.snort start script to starts the sensor

Important Snort pass Rule Order

By default, the sensor will not process any pass rules. In order for the sensor to correctly process pass rules, you must add the -o switch in the /etc/rc.d/rc.snort script to change the rule order from Alert, Log, Pass to Pass, Alert, Log. Be very careful that your pass rules will not disable other rules in the ruleset.


$SNORTBIN/snort \

-A \

-d \

-o \

-I \

-g snort \

> -u snort \

> -i $NIC \

> -c $SNORTETC/snort.${POLICY}.conf \



Sguil Server Troubleshooting

Note: All these checks must be done as root

1- If you are unable to login the Sguil server via the Sguil client, check to see if the Sguil daemon are running on the server. Execute the following command:

ps -aef| grep tclsh

There should be 3 lines showing the services running. If you only see one, kill that service before restarting the Sguil daemon. Execute the following and repeat the previous command:

pkill tclsh

The Sguil database should have 2 ports open to provide access to the client and the sensor. Execute the following command:

netstat -an | grep 337

You should see TCP port 3374 used by the client and TCP port 3376 used by the sensor (sensoragent service). If one is missing, restart the Sguil daemon:

/etc/rc.d/sguild stop

/etc/rc.d/sguild start

2- If the Sguild daemon won't start, check if the MySQL database is running:

ps -aef | grep mysqld

If the database isn.t running, restart the database:

/etc/rc.d/mysqld stop

/etc/rc.d/mysqld start

3- If you suspect the data from a sensor is not going into the database, you can stop the Sguil service and manually observe the traffic. Do the following to watch the traffic in realtime:

/etc/rc.d/sguild stop

/etc/sguild/sguild -o -s

If there are any errors, Sguil is going to crash where the error occurs. If no errors are observed, use CTRL-C to stop and restart the service.

The database has a cronjob that should be cleaning the database logs on the first of each month at 1 am. If for some reasons that Sguil daemon does not restart, it is possible the database has not been cleaned and you may want to run the script to see if this will solve the issues. The script will stop the Sguil daemon if running, keep the past 30 days of logs and restart the Sguil Daemon. Run the following script and check to see if the Sguil daemon is running:


ps -aef | grep tclsh

However, if you get the following error:

root@sensor:/etc/sguild# ./sguild -o -s

pid(2182) Loading access list: /etc/sguild/sguild.access

pid(2182) Sensor access list set to ALLOW ANY.

pid(2182) Client access list set to ALLOW ANY.

pid(2182) Adding AutoCat Rule: ||ANY||ANY||ANY||ANY||ANY||ANY||tag:

Tagged Packet||1

pid(2182) Connecting to on 3306 as sguil

pid(2182) MySQL Version: version 4.1.13-log

pid(2182) SguilDB Version: 0.11

pid(2182) Creating event MERGE table.

pid(2182) Creating tcphdr MERGE table.

pid(2182) Creating udphdr MERGE table.

pid(2182) Creating icmphdr MERGE table.

pid(2182) Creating data MERGE table.

ERROR: loaderd: You appear to be using an old version of the sguil Database schema that does not support the MERGE sancp table. Please see the CHANGES document for more information.

If you get the above error, you can execute this script:


If the script doesn.t exist, execute the following commands:

/etc/rc.d/rc.sguil stop

mysql -usguil -psguil -h -D sguildb

mysql> DROP TABLES sancp, event, tcphdr, udphdr, icmphdr, data;

That will remove the MERGE tables only. Your data will still be there

and the MERGE tables will get recreated when sguild starts.

/etc/rc.d/rc.sguil start

Login the client

Sguil Web Reports

The server containing the database creates by default a daily web report available through Webmin. Login Webmin in the report section https://server:10000/reports/ and look under Sguil_Reports. These reports are generated at 1200 daily on the traffic reported on the previous day. The reports are based on the events processed under the 7 incidents categories. Since all the events for the previous day won.t be processed before the report is automatically generated, you can manually reprocess the previous. day report with the following command:

/etc/sguil/incident_report.tcl --start yesterday --end today

You can manually generate reports based on dates as well. Here is an example to create a monthly report for the previous month.

/etc/sguil/incident_report.tcl --start "2006-09-01" --end today "2006-10-01"

Setting bond0 networking

In order to setup eth1 and eth2 as bond0, you need to copy the following scripts:

This will enable all the bond0 scripts:

- cp /etc/rc.d/rc.local_bond0 /etc/rc.d/rc.local

- vi /usr/local/snort/etc/snort.external.nic

- Change the eth1 to bond0 and save the changes

- vi /usr/local/snort/etc/snort.internal.nic

- Delete eth2 from this file (dd and Shift ZZ). Save and exit

Change the log_packet script configuration in the root cron:

- crontab -e

- Commend out the log_packets script for eth1

- Uncomment the log_packets script for bond0

Reboot the system to enable bond0 interface

Setting up Ntop for Traffic Monitoring

If you only want to run Ntop on a harden platform, use the default installation without Sguil and enable Ntop as describe below.

Before you start ntop to monitor the network traffic passing through the sensor, you need to execute the following command to setup your admin password:

ntop -A (Enter your admin password here)

Edit the rc.local file on the sensor only or the all-in-one sensor:

vi /etc/rc.d/rc.local

Uncomment the last two lines to start ntop on the next reboot as a daemon.

To manually start ntop and configure /etc/rc.d/rc.local according to your network, do:

ntop -W 443 -w 0 -i eth1,eth2 -M -p /usr/local/etc/ntop/service.list -d

-w To start non SSL ports such as port 80

-W Start SSLv2 port on port 443

-i Configure list of interfaces separated by coma

-M Should be used if you are monitoring more than one interface

-p Contains the list of ports that are showing as graphic on the main page

-d To daemon mode

Important Note: Enable SSL 2 in your browser before you login the ntop webserver


After you login, Configure -> Admin -> Startup Options and login with your newly created admin account and password.

The default capture interface is set to eth1 in order to capture the same data as the sensor sees and restart ntop to enable the correct interface. Usually rebooting the sensor and login ntop. See the man pages for any other configuration alternative.


Shadow Command Line Pattern Search script

A new script is now in the /root called pat_search.pl which can be used to search multiple days. The format is as follow:

./pat_search.pl -n -b YYYYMMDDHH -e YYYYMMDDHH -p PATTERN

-n Do not resolve addresses (faster)

-b Beginning day and hour

-e Ending day and hour

-p Pattern to search in BPF format. Ex: "tcp port 27374"

It is configured with the following tcpdump options:

-X Display HEX and ASCII data

-v Verbose

-s 0 Read back the maximum snaplen on each packets

The output can be redirected to a file by using > filename

If you would like to install the Shadow console, you should read the following document from the Shadow Team at:


Background Information About this Setup

How to manually mount a CD-ROM or diskette

To manually mount the CD-ROM do:

mkdir /cdrom  (create cdrom directory)

mount /dev/hdc /cdrom -t iso9660 (mount the cdrom)

umount /cdrom (un-mount the cdrom)

The cdrom maybe hdb, hdc or hdd depending where it has been installed in the computer. To find out which device is the CD-ROM, do dmesg |more

To manually mount the floppy do:

mkdir /floppy  (create floppy directory)

mount /dev/fd0 /floppy -t vfat  (mount the floppy)

umount /floppy (un-mount the floppy)

Operating System Patches

The Slackware web site should be monitored for any new patches that should be applied on the selected packages at Annex A. The site is http://www.slackware.com

The security list is available at:


Slackware Patch Maintenance Script

Patches can be maintained and downloaded by running the /root/slackupdate.sh script. This script will check for any package that are available for update and saves them in /tmp/slackupdate. To install the patch updates as follow:

telinit 1

cd /tmp/slackupdate

upgradepkg <patch>.tgz

(Do not apply kernel modules or new kernels patches. System will fail if applied)

telinit 3

Note with kernels: Do not apply any kernel or modules because this system has a custom kernel and modules and if those supplied by Slackware are applied, the system will fail.

Open Secure Shell (openssh) is part of the installation on this CD

Note: Secure Shell is normally used to transfer data between the monitoring station and the sensor. The instructions on how to setup an analysis station are available at the NSWC site. The site is at: http://www.nswc.navy.mil/ISSEC/

Configure Shadow in the following way (Pre-configured with this installation):

‑ cd /usr/local/SHADOW/sensor and make the following changes:

‑ vi gmt.ph and verify the following settings:

* Decide whether you want to use local time or GMT (default GMT)

* $LOGPROG = "/usr/sbin/tcpdump" (or its exact location)

* $PROGPAR = "-i eth1" (or eth0 if using a single card as the traffic collector)

* $GZIPPROG = "/bin/gzip" (or its exact location)

* $LOGDIR = "/LOG/RAW/gmt" (if not using default, change it here)

Note: All of the Shadow files are owned by the shadow user and part of the shadow group. The account has been locked. In order to use this account, run "passwd shadow" to add your own user password.

The message of the day changed to reflect more proactive security (Pre-configured with this installation):

- vi /etc/motd


This is a controlled access system.

This station is monitored at all times.

Only authorized users may connect


- cp /etc/motd /etc/issue

Update rc.local to start local applications:

O- vi /etc/rc.d/rc.local and add the following services



# /etc/rc.d/rc.local:  Local system initialization script.


# Put any local setup commands in here:

# Starting eth1

echo "Fire up eth1 now to start Shadow collection..."

/sbin/ifconfig eth1 promisc -arp

/sbin/ifconfig eth1 up


echo "Starting mysql database..."

/usr/local/mysql/bin/mysqld_safe --user=mysql &


echo "Starting shadow sensor..."

/usr/local/SHADOW/sensor/start_logger.pl gmt


# Uncomment any of these to start Network Grep sensor


#echo "Starting Network Grep sensor..."

#/usr/local/NGREP/sensor/start_ngrep.pl kazaa

#/usr/local/NGREP/sensor/start_ngrep.pl gnutella

#/usr/local/NGREP/sensor/start_ngrep.pl dir_c


echo "Starting Webmin..."



echo "Starting firewall..."



echo "Starting Snort sensor..."

if [ -x /etc/rc.d/rc.snort ]; then

. /etc/rc.d/rc.snort start

. /etc/rc.d/rc.barnyard start



# All done

Update cronjob to start Shadow, update time, and cut new logs each hour (Pre-configured on Shadow CD):

Crontab running as Root

# Sync with a time server on a daily basis

17 23 * * * /usr/sbin/ntpdate time‑a.nist.gov

18 23 * * * /sbin/hwclock ‑‑systohc

# Cut a new Shadow log on a hourly basis

0 * * * * /usr/local/logger/SHADOW/sensor_driver.pl gmt > /dev/null 2>1&

# Restart snort every night at midnight after updated Snort

# signatures have been downloaded


5 0 * * * /etc/rc.d/rc.snort restart > /dev/null 2>1&

# Cut a new ngrep log on a hourly basis

# You can uncomment any of these examples or create your own in the

# /usr/local/NGREP/sensor directory using the template.ph

#0 * * * * /usr/local/NGREP/sensor/ngrep_driver.pl kazaa > /dev/null 2>1&

#0 * * * * /usr/local/NGREP/sensor/ngrep_driver.pl gnutella > /dev/null 2>1&

#0 * * * * /usr/local/NGREP/sensor/ngrep_driver.pl dir_c > /dev/null 2>1&

# Check that sshd is running

0,5,10,15,20,25,30,35,40,45,50,55 * * * * /usr/local/sbin/chk-sshd.pl

# Creates softlinks on the files located in /LOG/external/dailylogs/date

1 * * * * /root/epoch.pl > /dev/null 2>1&

Crontab running as Snort

# This crontab runs at 1 am to updated the Snort signatures using the oinkmaster.pl

# script and merge the new rules into the rules directory.


0 0 * * * /usr/local/snort/rc.snortupdate

Note: During the first reboot, you will notice some errors in directory /LOG/RAW/gmt with files sniff and sensor date. This is normal as those files do not exist yet and the sensor is creating them.

O- Log in as root

O- Run ps -aef and verify the services running. (See picture 1)

O- Run netstat -at and verify the active connections (See picture 2). ssh should be the

only service listening for remote login.

O- Check Annex D for a NMAP port reconnaissance probe confirming ssh is the only

available service.

O- cd /LOG/RAW/gmt and verify the sensor is collecting. Do an ls -l and look for the

hourly file that looks like this: tcp.20010312.gz with 0 bytes.

O- The sensor is ready to be connected to the network.

Network Grep (Ngrep) configuration

Ngrep Version 1.42
5 January 2005

Configure Ngrep in the following way (Pre-configured with this installation):

I would like to thank Alex Arndt for supplying the scripts in this section to make them part of this sensor. In this section, you can run ngrep in the same manner as a Shadow sensor in real-time to monitor as in the example below, someone successfully gaining access to a workstation and running Directory of C.

‑ cd /usr/local/NGREP/sensor and make the following changes:

‑ vi template.ph and verify the following settings:

$FILTER = "'[C|c][+][D|d][I|i][R|r][+][C|c]|Directory of [C|c]'";

The start_ngrep.pl and stop_ngrep.pl scripts are used by cron to rollover a new file hourly. Check the rc.local section to start ngrep when the sensor start and the cron section to see the rollover configuration.

- cd /usr/local/NGREP

You can use ngreppm.pl to download the files to a remote analysis station.

Note: Adapt the filter to the keyword being searched.

Ngrep Pattern Search script

A new script is now in the /root called ngrep_pat_search.pl which can be used to search multiple days. The format is as follow:

./ngrep_pat_search.pl -b YYYYMMDDHH -e YYYYMMDDHH -p PATTERN -i BPF filter

-b Beginning day and hour

-e Ending day and hour

-p Pattern to search. Ex: "kazaa"

-i BPF Filter. Ex: "tcp port 80"

It is configured with the following ngrep options:

-t Print a timestamp in the form of YYYY/MM/DD HH:MM:SS.UUUUUU

everytime a packet is matched

-I Ignore the case of the expression

-I Read pcap_dump back into ngrep

This script match keywords and BPF filters. Here are some examples:

Print all the packets on TCP port 80 that contains http

./ngrep_pat_search.pl -b YYYYMMDDHH -e YYYYMMDDHH -p "http" -i "tcp port 80"

Print all the packets on TCP port 80

./ngrep_pat_search.pl -b YYYYMMDDHH -e YYYYMMDDHH -p " " -i "tcp port 80"

Print all the packets that contains the string http

./ngrep_pat_search.pl -b YYYYMMDDHH -e YYYYMMDDHH -p "http" -i " "

Note: The output can be redirected to a file by using > filename


Securing Linux - A Survival Guide for Linux Security

SANS Institute

Intrusion Detection: Shadow Style step-by-step guide, Version 1.2.2

SANS Institute 1998

Installing Shadow


Shadow step-by-step Intrusion Detection using TCPdump


Snort IDS






MSB Networks



MySQL Windows Control Center


Chaosreader to replay tcpdump traffic in HTML
